Awnings
Jamaica

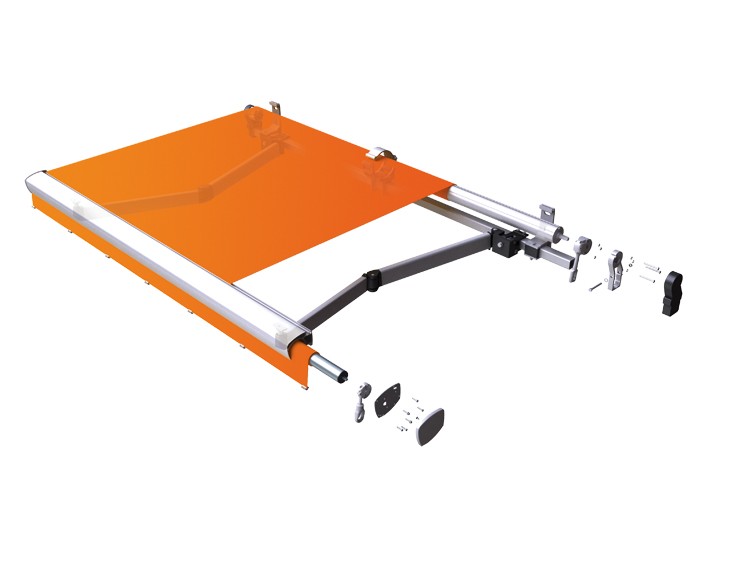

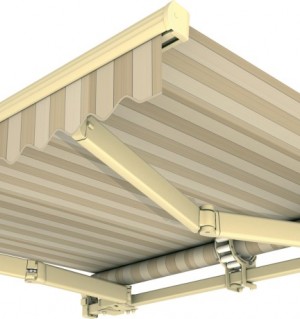

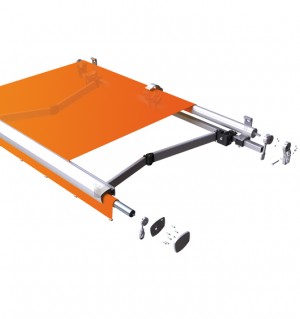

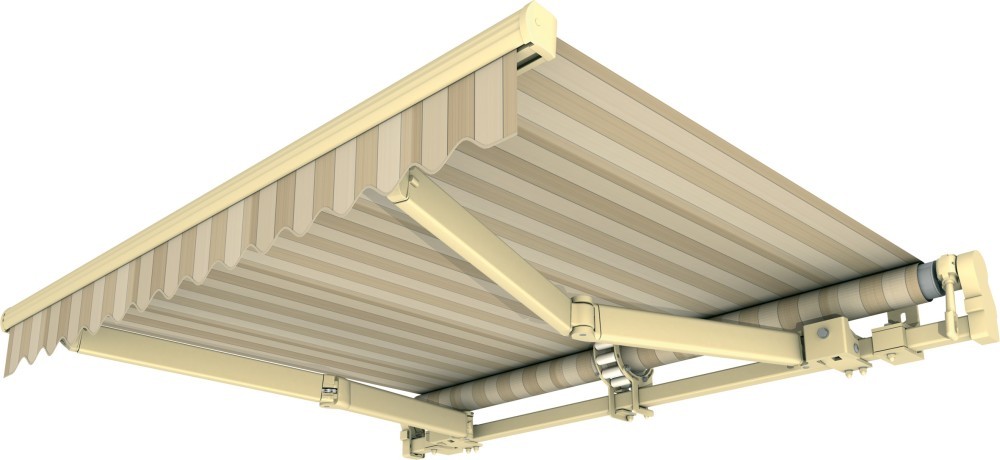

JAMAICA combines elegance and strength. Its construction provides high durability under intensive use. It is therefore the perfect choice for big terraces and for commercial applications. The awning’s folding arms are installed on special-construction aluminium brackets, made by machines using numerical control. A plate link chain used in the arms and precisely made articulated joints provide long-term dependable operation of the awning. A central support for the roller tube in big awnings ensures even tension of the fabric. The construction is supported with a square steel beam that gives relative freedom of bracket location and simplifies the awning installation. An optional aluminium hood protects the rolled-up fabric. The construction of the awning is powder lacquered in white, graphite, silver with graphite finishing, beige, and brown. There is a possibility to use overlapping arms in this awning.
Technical parameters
CASSETE: no
ROLLER TUBE: 70mm and 80mm diameter
MOUNTING: wall, ceiling, roof
PROJECTION: 1.6m; 2.1m; 2.6m; 3.1m; 3.6m: 4.1m
MAXIMUM PROJECTION: 4.1m
MAXIMUM WIDTH: 7.0m
MINIMUM WIDTH: projection + 0.5m
ARMS: folding, aluminum, with springs and plate Flyer’s chain, folded arm levelling, in case of overlapping arms minimum width = projection - 0.4m
OVERLAPPING ARMS: yes
TILT ANGLE: 5° ~ 40°
OPTIONAL HOOD: yes
CONSTRUCTION COLOUR: powder coating: white, beige, brown, graphite, silver+graphite
FABRIC: over 100 patterns
MANUAL OPERATION: crank: 1.5m; 1.8m; 2.2m
AUTOMATIC DRIVE: motor, motor with manual override, remote control, wind-sun weather control
AUTOMATIC VALANCE: standard height 21cm (±0.5cm), shape like in the provided template, maximum height 40cm
