APPLICATION
TM 77HI Windows system is a new innovative solution which allows for obtaining perfect parameters of thermal and acoustic insulation, as well as protection from wind and water.

TM 77HI OKNA SYSTEM ALLOWS FOR THE CONSTRUCTION OF THE FOLLOWING STRUCTURES:

• fixed windows,
• tilt-turn windows,
• tilt windows,
• turn windows,
• multi-sash windows,
• windows with pillars.

TECHNICAL DESCRIPTION

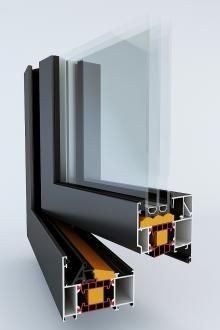

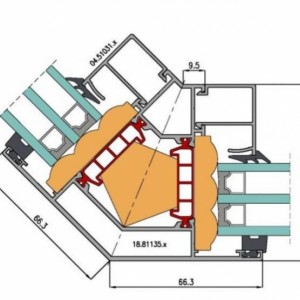

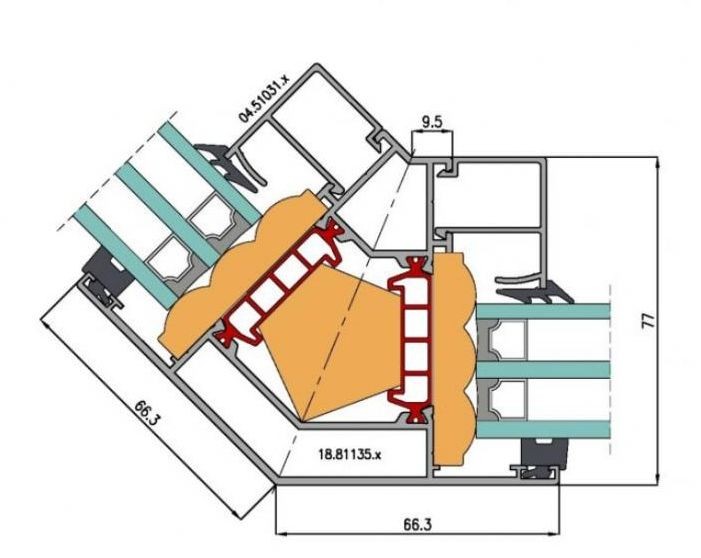

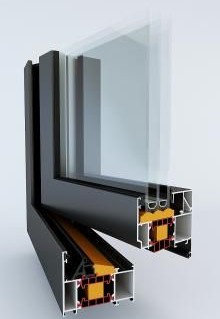

TM 77 HI Windos system consists of 2 aluminium parts separated by insulation tape.
The depth of construction is as follows:

• window frame - 77 mm
• window sash – 86.4 mm



Technical parameters

ADDITIONAL ASSETS (TYPICAL FOR AN INDIVIDUAL SYSTEM)

• the system allows for saving energy which translates into the marked decrease in heating costs
• the system allows for the creation of a large-surface structures enabling a modern arrangement of elevations and interiors
• it co-operates with a wide range of fitting and control (a possibility of different structural configurations, also electrically and remote-controlled)
• the system allows for the implementation of modern solutions concerning window structures in various configurations and layouts
• the system includes unique solutions of thermal insulation which allow for obtaining a perfect value of the thermal transmission coefficient at the level of Uf=1.1 – 1.5 W/m2K
