The outstanding insulation characteristics of the IDEAL 5000® provide first class living comfort.

Ideal for increased well being …

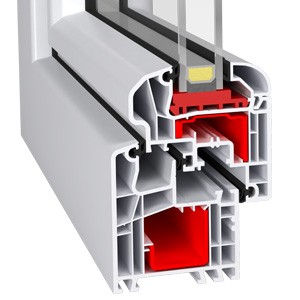

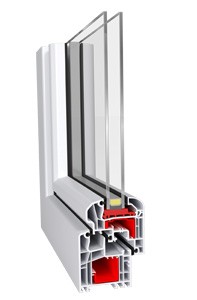

IDEAL 5000® is a constant 3-6-chamber system with a depth of 70 mm and 3 levels of sealing that stands out for its extremely good insulation.

Security and a comfortable atmosphere define the quality of living in the privacy of one's home.

The advantages of IDEAL 5000® at a glance
aluplast`s window profile system IDEAL 5000® is the consequent development of the IDEAL 4000® system on the basis of a middle sealing. Here, too, the principle of compatibility is being tracked, independent from the greater depth (compared to the IDEAL 2000®).

With specially developed reinforcements the system IDEAL 5000® in combination with special glazing beads the system has even passive-house-standard. The extraordinary construction creates a very slim outside view of the airfoil that highlights the window and makes it particularly attractive.

Technical parameters

• 70 mm depth
• heat insulation characteristics for the profile Uf-value = 1.2 W/m²K (passive house capability with relevant components)
• glazing thickness up to 41 mm
• sound insulation up to 47 dB (up to sound insulation class V)
• double design variety in the sash
• design glazing bead for the interior
• covered, non-visible drainage possible
• covered hardware position for highest degree of protection against break-in
• 5 chamber system
• passive house suitable
• great reinforcement chamber for ideal static strains
• specially protected hardware chamber for ideal security
• hidden drainage
• different profile outlines for appealing optical characteristics (e.g. Round-line, E-Optics)
• centre sealing system with three sealing levels
• easy disconnection of profile and sealing for eco-friendly recycling
