PI 50N OUTWARD
The PI 50N OUTWARD system is used for the construction of modern high-parameter internal development requiring thermal and acoustic insulation of many types of windows, cabinets, balcony doors with their leaves opening to the outside of rooms, provided for the development of residential, public service and industrial buildings.
The system enables the construction of the following:
- turn windows with tilt sashes on traditional and scissors hinges
- windows tilt to the outside on traditional and scissors hinges
TECHNICAL DESCRIPTION

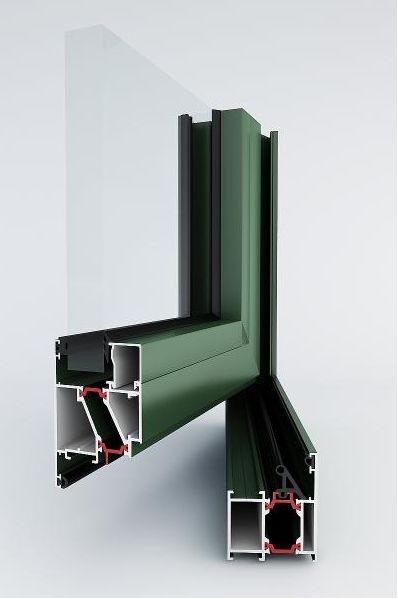

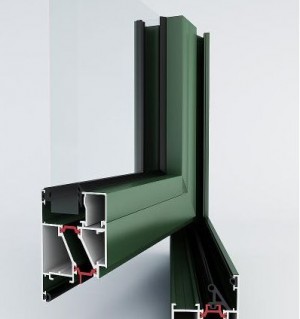

The PI 50N system consists of three-chamber aluminium profiles with a thermal separator.
The casing depth is as follows:
- frame - 50 mm
- sash - 59 mm
The PI 50N system may use a variety of fill types (insulated glass, also in 13-40 mm three-pane packages).
Maximum leaf dimensions
- sash tilt on window hinges 1250 x 2100 mm,
- sash turn on window hinges 1500 x 1800 mm,
- sash tilt on scissors hinges 835 x 2400 mm,
- sash turn on window hinges 2200 x 2000 mm,
ADDITIONAL VALUES (PARTICULAR FOR EACH SYSTEM)
The structure aesthetic values are stressed by the high quality of profile surface finishing: powder varnishing, wood base colour painting and anodising.
CHARACTERISTIC FEATURES
The system may realise modern window structure solutions in multiple configurations and layouts. It enables window installation in facade systems. It also has a unique system of triple insulation
The PI 50N system windows allow for the optimum construction of building elevation structures, considering special needs of users as far as the functions, aesthetics and durability.
The solutions provide a building with individual style, ensure the implementation of the architectural concept applying an economical solution. Fittings diversity and two methods of hinges installation ensure universality.
The usefulness of the product in the construction branch has been confirmed by studies carried out in notified laboratories.
Technical parameters
| Parameter | Norm | Value |
| Air infiltration | PN-EN 12207 | Class 4 |
| Water-tightness | PN-EN 12208 | E750 |
| Deformation | PN-EN 12210 | C4 |
| Acoustic insulation | PN-EN ISO 140-3 | 30÷40 dB |
| Thermal insulation | Uf=2,3÷2,4 W/m2K | |
| Corrosivity category | PN-EN ISO 12944-2:2001 | C1, C2, C3, C4 |
